High-Temperature (250°C) Universal Zero-Insertion-Force DIP Test Socket – Series X55X

High-Temp (250°C) Universal ZIF DIP Burn-in & Test Socket – (300°C Special Order)

FEATURES

  • Universal Test socket accepts devices on 0.300 to 0.600 [7.62 to 15.24] centers
  • All pin count sockets go into PCB with either 0.300 or 0.600 [7.62 or 15.24]
    centers
  • Contacts are normally closed to eliminate dependence on plastic to sustain
    contact
  • Socket handle can be configured with closed contacts (on) when in the UP
    or DOWN position, and can be mounted on either the right or left side
  • Sockets can be soldered into PCBs or fit into Test Socket Receptacles

Ordering information

Clear
  • SOCKET BODY: natural UL 94V-0 glass-filled Polyetheretherketone (PEEK)
  • HANDLE: Stainless Steel
  • CONTACTS: BeNi 360, 1/2-hard
  • CONTACT PLATING: 50μ [1.27μ] min. NiB : for 300°C [572°F] 100µ inches [2.54µm] min. Au, MIL-G-45204, Type 1 (no hardeners or additives) over 100µ inches [2.54µm] min. low-stress Ni
  • CONTACT CURRENT RATING: 1 amp
  • OPERATING TEMPERATURE: Operating Temperatures: -85°F to 482°F [-65°C to 250°C] NiB version
    -85°F to 572°F [-65°C to 300°C] heavy Au version
  • RETENTION FORCE (closed): 55 grams/pin based on a 0.020 [0.51] dia. test
    lead
  • INSULATION RESISTANCE: 1000 MΩ min.
  • DIELECTRIC WITHSTANDING VOLTAGE: 1000 VAC
  • LIFE CYCLE: 25,000 to 50,000 cycles
  • ACCEPTS LEADS: 0.015-0.045 [0.38-1.14] wide, 0.110-0.280 [2.79-7.11] long

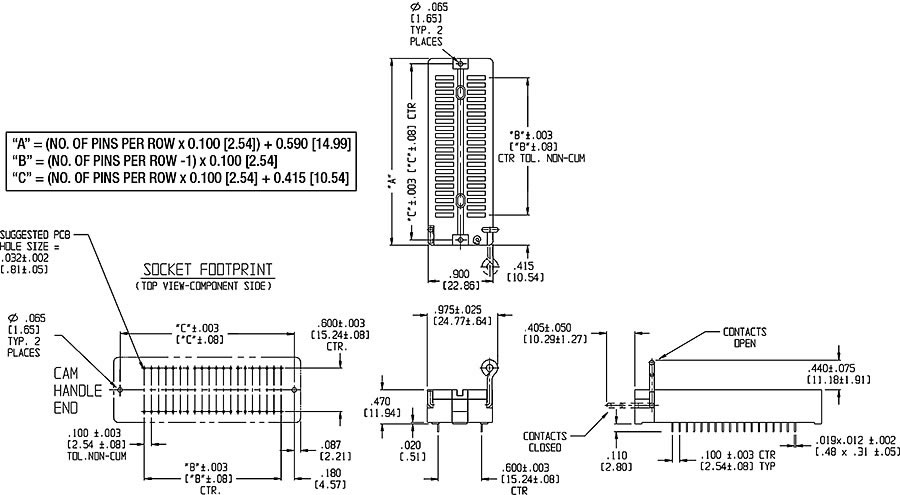

  • See Socket Footprint in the Drawings tab

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“A” = (NO. OF PINS PER ROW x 0.100 [2.54]) + 0.590 [14.99]
“B” = (NO. OF PINS PER ROW -1) x 0.100 [2.54]
“C” = (NO. OF PINS PER ROW x 0.100 [2.54] + 0.415 [10.54]

DO NOT USE THESE SOCKETS IN A BURN-IN OVEN WITH THE SOCKET CONTACTS IN THE
OPEN POSITION, AS IT WILL DAMAGE THE SOCKET

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED.

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
