Zero-Insertion-Force DIP Test Socket – Series 516

FEATURES

  • A choice of 24-, 28-, or 40-pin count devices can be inserted without bending
    or otherwise damaging the legs, since no force is required to either insert or
    remove the component from the ZIF DIP test socket
  • Contacts are normally open and are closed by a unique cam action controlled
    by dual lever arms
  • The last 15° of movement of the cam provides a wiping action to the
    contacts on the legs of the device to remove any residue, ensuring a gas-tight
    seal
  • Tapered entry helps guide the device legs into the mating position with
    the contacts

Ordering information

Clear
  • BODY, HANDLE, CAM: Black UL 94V-0 glass-filled 4/6 Nylon
  • PINS: BeCu 170 or 172, 1/2-hard
  • PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ]
    min. Ni per SAE AMS-QQ-N-290B
  • CONTACT CURRENT RATING: 1 amp
  • OPERATING TEMPERATURE: 257°F [125°C]
  • MINIMUM RETENTION FORCE (when closed): 15 grams/lead, based on a 0.008 [0.20]
    thick test lead
  • ACCEPTS MOST LEAD WIDTHS WITH LENGTHS FROM: 0.075 to 0.250 [1.91 to 6.35]
  • SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

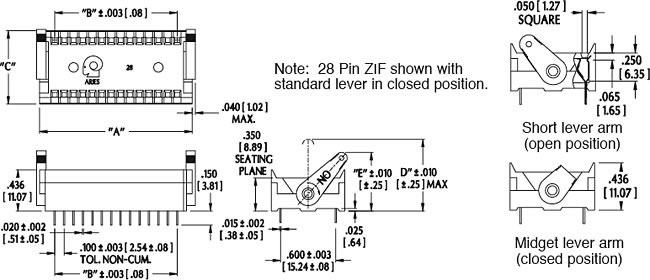

“A” = (NO. OF PINS PER ROW x 0.100 [2.54]) + 0.220
“B” = (NO. OF PINS PER ROW -1) x 0.100 [2.54]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

Std Lever Arm
Short Lever Arm
Midget Lever Arm
# Pins
Dim. “C”
Dim. “D”
Dim. “E”
Dim. “D”
Dim. “E”
Dim. “D”
Dim. “E”
24
0.785 [19.94]
0.76 [19.30]
0.63 [16.00]
0.60 [15.24]
0.52 [13.21]
0.41 [10.41]
0.42 [10.67]
28
0.785 [19.94]
0.76 [19.30]
0.63 [16.00]
0.60 [15.24]
0.52 [13.21]
0.41 [10.41]
0.42 [10.67]
40
0.780 [19.81]
0.76 [19.30]
0.63 [16.00]
0.60 [15.24]
0.52 [13.21]
0.41 [10.41]
0.42 [10.67]
