Fusion Bonded Cable Jumpers – Series 152FB

Fusion Bonded Cable Jumpers – Series 152FBw

FEATURES

  • Series 152FB fusion-bonded Cable Jumpers are flexible – plug them directly
    into PC boards or sockets
  • Stranded wire conductors are fusion bonded with an overcoat of Sn for easy
    soldering or socketing
  • Each jumper is shipped with protective tabs on both ends for maintaining
    proper conductor spacing

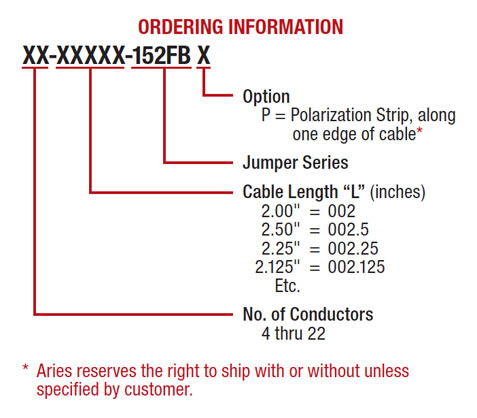

Ordering information

Clear
  • INSULATION: UL VW-1, Style 2651 Polyvinyl Chloride (PVC) with optional Polarization
    Stripe on one side
  • NOMINAL INSULATION: Thickness 0.009 [0.23]
  • CONDUCTORS: 26-gauge, 7-strand Cu with Sn fusion-bonded overcoat
  • OPERATING TEMPERATURE: -4°F to 221°F [-20°C to 105°C]
  • VOLTAGE RATING: 300Vrms
  • DIELECTRIC WITHSTANDING VOLTAGE: 1500Vrms
  • INSULATION RESISTANCE: 10,000 MΩ per 10 feet [3.05 meters]
  • RESISTANCE: 40.3Ω per 1000 feet [304.8 meters]
  • PROPAGATION DELAY: 1.3ns/ft.
  • SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.84 ±0.05] dia.

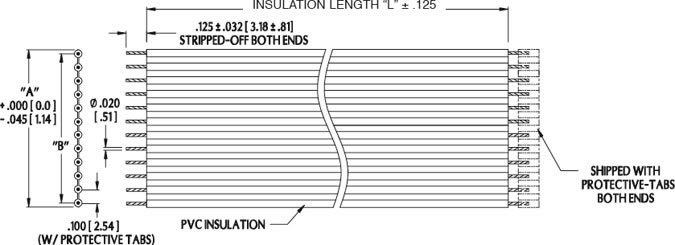

ALL DIMENSIONS IN INCHES [MILLIMETERS]

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“A” # CONDUCTORS x 0.100 [2.54]
“B” (# CONDUCTORS -1) x 0.100 [2.54]

ALL CABLES SHIP WITH LEAD-FREE MATERIAL UNLESS SPECIFIED BY CUSTOMER WHEN ORDERING

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

# Conductors
Min. INSULATION: Length
4 thru 8
1.000 [25.40]
9 and 10
1.250 [31.75]
11 thru 22
1.500 [38.10]
