DIP Jumpers – Series 112, 113, and 114

FEATURES

  • Aries offers a wide array of DIP jumper configurations and wiring possibilities
    for all your programming needs
  • Reliable, electronically-tested solder connections
  • DIP-end cable is potted to provide strain relief
  • Protective covers are also provided on header
  • Pitch bars help maintain 0.100 [2.54] conductor spacing
  • 10-color cable allows for easy identification and tracing
  • For jumper lengths under 3.000 [76.20]

Ordering Information

Consult Factory

  • HEADER BODY AND PITCH BAR: black UL 94V-0 glass-filled 4/6 Nylon
  • HEADER PINS: Brass 1/2-hard
  • PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ]
    min. Ni per SAE AMS-QQ-N-290B
  • CABLE INSULATION: UL Style 2697 Polyvinyl Chloride (PVC)
  • CABLE LAMINATE: clear PVC, self-extinguishing*
  • 0.050 [1.27] PITCH CONDUCTORS: 28-AWG, 7/36-strand, tinned Cu per ASTM B
    33
  • 0.039 [0.99] PITCH CONDUCTORS: 26-AWG, 7/34-strand)
  • CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient
  • CABLE VOLTAGE RATING: 300V
  • CABLE TEMPERATURE RATING: 176°F [80°C]
  • CABLE CAPACITANCE: 13.0pF/ft. [42.7pF/meter] nominal at 1MHz*
  • CROSSTALK: 10-ft sample, 5ns rise time with 2 lines driven; near end 4.7%;
    far end 4.3% nominal*
  • PROPAGATION DELAY: 1.5ns/ft. [4.9ns/meter] nominal*
  • INSULATION RESISTANCE: 1010Ω (10 ft. [3 meters] min.)

* Applies to 0.050 [1.27] Pitch Cable Only

  • SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.

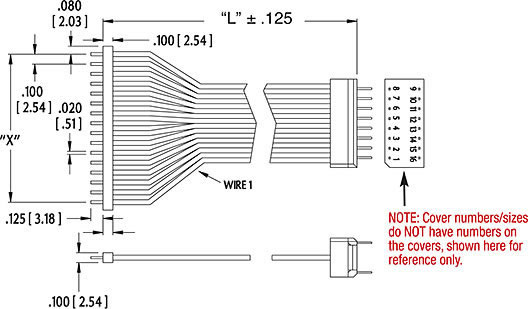

ALL DIMENSIONS IN INCHES [MILLIMETERS]

“X” (# CONDUCTORS -1) x 0.100 [2.54]

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

Wiring Table
Centers “C”
Dim. “D”
Available Sizes
0.300 [7.62]
0.395 [10.03]
4 thru 20
0.400 [10.16]
0.495 [12.57]
22
0.600 [15.24]
0.695 [17.65]
24, 28, 40
