Inline Jumpers on 0.100 [2.54] Centers – Series 152, 156, and 157

FEATURES

  • End connectors have Au-plated, solid Brass pins on 0.100 [2.54] centers
  • Available single-ended (Series 156), double-ended (Series 157), or bare-ended
    (Series 152)
  • Reliable, electronically-tested solder connections
  • 10-color cable allows for easy identification and tracing

Ordering information

Clear

Series 156 & 157 are NOT available in RoHS

  • HOUSING: natural UL 94-HB Nylon 6/6
  • HEADER PINS: Brass, 1/2-hard
  • PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ]
    min. Ni per SAE AMS-QQ-N-290B
  • CABLE INSULATION: UL Style 1061 Polyvinyl Chloride (PVC), semi-rigid
  • LAMINATE: clear PVC, self-extinguishing
  • CONDUCTORS: 26-AWG, 7/34-strand, tinned Cu per ASTM B 33 Series 152 Conductors are not pre-tinned. CONSULT FACTORY for pre-tinned, bare-ended jumpers
  • CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient
  • CABLE VOLTAGE RATING: 300V
  • CABLE TEMPERATURE RATING: 176°F [80°C]
  • SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.

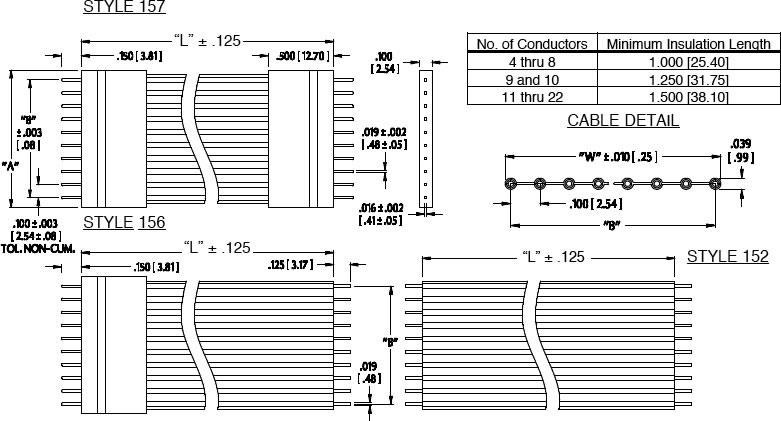

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“A” (# CONDUCTORS x 0.100 [2.54]) +0.040 [1.02]
“B” (# CONDUCTORS -1) x 0.100 [2.54]
“W” (# CONDUCTORS x 0.100 [2.54]) -0.020 [0.51]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
