Strip-Line™ Socket with Bifurcated Contact Wire Wrap Pins – Series 0501

FEATURES

  • For mounting liquid crystal displays and other high pin count or odd centered components
  • Available in several sizes with bifurcated contacts in wire wrap pins or solder pin tails
  • Optional Spacer available for mounting on 0.300 [7.62], 0.600 [15.24], 0.900 [22.86], 1.100 [27.94], and 1.300 [33.02] centers. Consult factory for other sizes

Ordering information

Clear

Consult Data Sheet 12008 for Strip-Line™ Sockets with Solder Tail Pins.

  • BODY: black UL 94V-0 glass-filled 4/6 Nylon
  • PIN: Grade A Phosphor Bronze per QQ-B-750
  • OPTIONAL SPACER: FR-4 0.032 [0.81] thick
  • PIN PLATING: “11” 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B; “10” 200µ [5.08µ] min. matte Sn per ASTM B545-97(2004)e1 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B; “10TL” 200µ [5.08µ] min. 90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N 290B
  • CURRENT RATING: 1 amp
  • OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn & Sn/Pb plating; -67°F to 257°F [-55°C to 125°C] Au
  • INSERTION FORCE: 110g/pin average
  • WITHDRAWAL FORCE: 75g/pin average
  • ACCEPTS: flat leads up to 0.014 x 0.020 wide [0.36-0.51], Round Leads up
    to 0.020 [0.51] dia.
  • SOCKET ACCEPTS: lead lengths from seating plane 0.080-0.160 [2.03-4.06]
  • SUGGESTED PCB HOLE SIZE: 0.045 ±0.002 [0.1.14 ±0.05] dia.

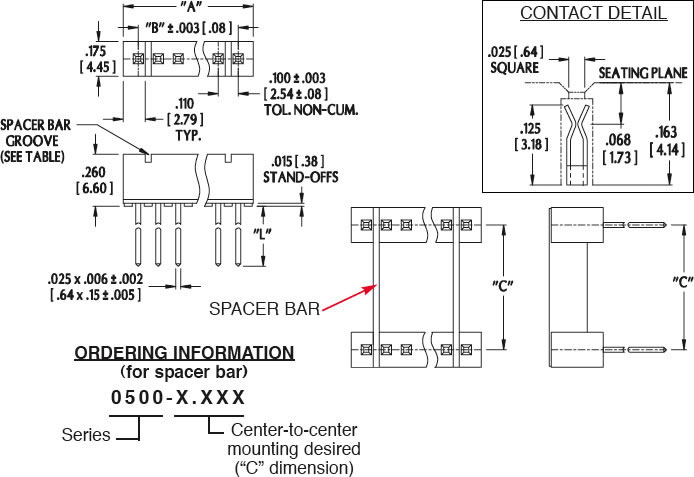

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“A” (# PINS x 0.100 [2.54]) +0.050 [1.27]
“B” (# PINS PER ROW -1) x 0.100 [2.54]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

# Pins
# Grooves
20
2
25
2
30
2
34
3
40
2
Dim. “L”
2-level wire wrap
0.420 [10.67]
3-level wire wrap
0.690 [17.52]
