Low-Profile Collet DIP Socket with Wire Wrap Pins – Series 503

FEATURES

  • Low-Profile Collet Sockets with Wire Wrap Pins
  • For Solder Pin Tails, consult Data Sheet 12011
  • Choose from several sizes and plating options

Ordering information

Clear

Consult Data Sheet 12011 for Low-Profile Collet Sockets with Solder Tail Pins.

  • BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
  • PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
  • PIN BODY PLATING: either 10µ [0.25µ] min. Au per MIL-G-45204
    or 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ]
    min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
  • 4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
  • CONTACT PLATING: 30µ [0.76µ] Au per MIL-G-45204 over 50µ [1.27µ]
    min. Ni per SAE AMS-QQ-N-290B
  • CONTACT CURRENT RATING: 3 amps
  • INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
  • WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
  • NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
  • OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn;
    -67°F to 257°F [-55°C to 125°C] Au
  • ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-0.162 [2.79-4.11] long
  • SUGGESTED PCB HOLE SIZE: 0.045 ±0.002 [1.14 ±0.05] dia.

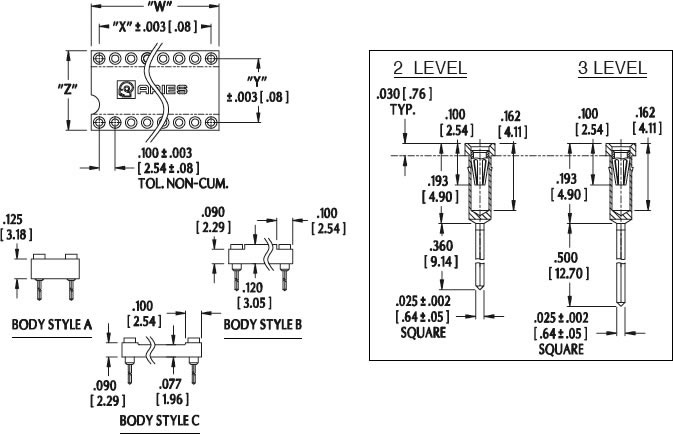

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“W” # PINS PER ROW x 0.100 [2.54]
“X” (# PINS PER ROW -1) x 0.100 [2.54]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

Centers “Y”
Dim. “Z”
Body Style
Available Sizes
0.200 [5.08]
0.300 [5.08]
A
2 thru 10
0.300 [7.62]
0.400 [10.16]
C
B
2 thru 20
22 thru 40
0.400 [10.16]
0.500 [12.70]
C
2 thru 22
0.600 [15.24]
0.700 [17.78]
C
B
2 thru 40
42 thru 48
0.900 [22.86]
1.000 [25.40]
B
2 thru 64
