Miniature Jumper – Mini-Link™ Series ML-100

Miniature Jumper – Mini-Link™ Series ML-100

FEATURES

  • Mini-Link™ Miniature Jumpers are useful for jumpering 0.025 [0.63] square pins on 0.100 [2.54] centers
  • Used to jumper from row-to-row or from pin-to-pin
  • The miniature size makes it possible to stack one on top of the other
  • A convenient test probe slot is provided
  • Mini-Links™ are available from the factory with or without a handle, used for ease-of-inserting or extracting
  • Sold in multiples of 50

Ordering information

Clear
  • BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
  • CONTACTS: BeCu 174, Spring-tempered, per ASTM B768
  • STANDARD CONTACT PLATING: 20µ [0.51µ] Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
  • CURRENT RATING: 3 amps
  • OPERATING TEMPERATURE: -67°F to 257°F [-55°C to 125°C]
  • INSERTION FORCE: 210g/pin ±40g
  • WITHDRAWAL FORCE: 180g/pin ±40g
  • MINIMUM INSERTION DEPTH: 0.075 [1.91]

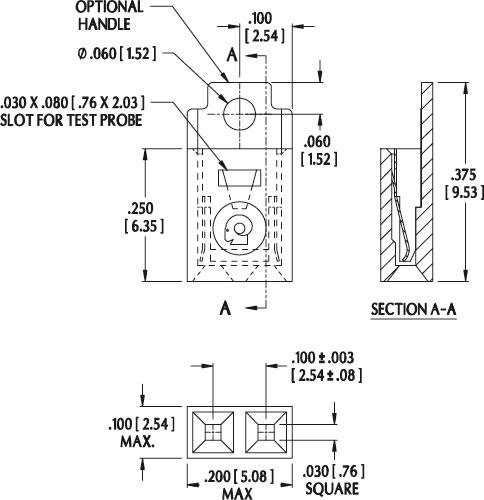

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
