Program and Shorting Plug – Series LP300

FEATURES

  • Shorting Plug mates with any 0.300 [7.62] center DIP socket to provide custom programming
  • Stacks on 0.100 [2.54] centers
  • Converts any socket into a DIP switch

Ordering information

Clear
  • STANDARD PLUG BODY MATERIAL: black UL 94V-0 4/6 Nylon
  • PINS: 3/4-hard Brass
  • PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
  • CURRENT RATING: 2 amps
  • OPERATING TEMPERATURE: -67° to 257°F [-55°C to 125°C]

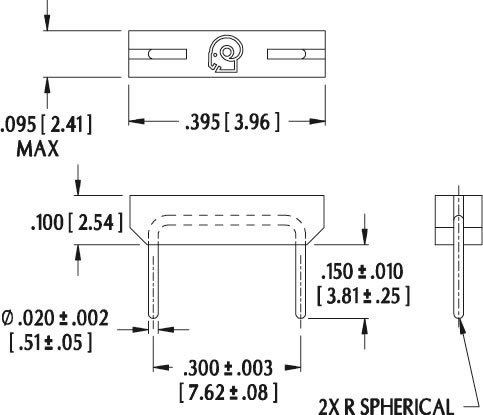

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
