Thru-Hole Male DIP Strip on 0.040 [1.02] – P/N 20-M40-11

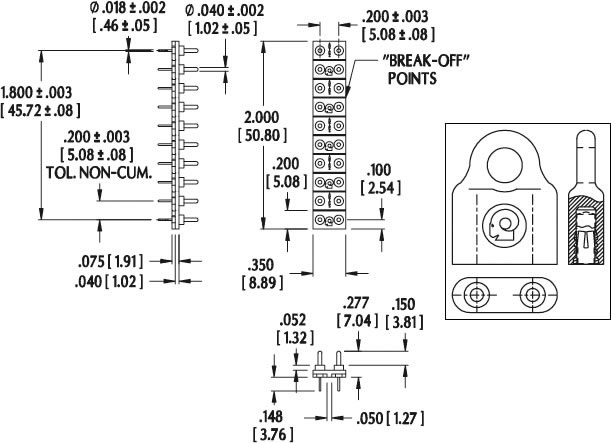

FEATURES

  • The DIP Strip is used in conjunction with Aries Shorting Jack SJ200, available separately, for your programming needs
  • Break feature allows strips to be cut to the desired number of positions

Ordering information

Clear
  • STANDARD DIP STRIP BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
  • PIN: Brass 360 1/2-hard per UNS C36000 ASTM B16-85
  • PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
  • CURRENT RATING: 3 amps
  • OPERATING TEMPERATURE: -67°F to 257°F [-55°C to 125°C]
  • SUGGESTED PCB HOLE SIZE: 0.028 ±0.002 [0.71 ±0.05] dia.

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
