SOIC-to-SOWIC Adapter – P/N XX-666000-00

FEATURES

  • Allows the use of a narrow package IC in place of a wide one

Ordering information

Clear
  • LEADS: mechanically fastened and soldered to adapter’s PCB substrate
  • PCB: FR-4, 0.062 [1.56] or 0.094 [2.39] thick manufactured to IPC-600E Class 2 standards
  • MALE PIN: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M
  • MALE PIN PLATING: 200µ [5.08µ] Sn/Pb 93/7 per ASTM B579-73 over 100µ [2.54µ] Ni per SAE AMS-QQ-N-290B
  • OPERATING TEMPERATURE: 221°F [105°C]
  • Standard SMT mounting to PCB
  • SMT Package can be IR Re-flowed, Vapor Phased, or simply Hand Soldered

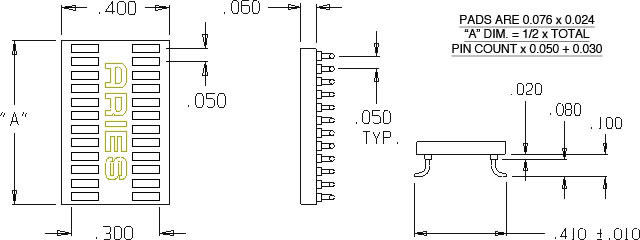

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

PADS ARE 0.076 [1.93] x 0.024 [0.61]

“A” DIMENSION = 1/2 x TOTAL PIN COUNT x 0.050 [1.27] + 0.030 [0.76]

ALL CACs ARE MANUFACTURED AND INSPECTED TO IPC- 610B CLASS 2CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
