Low-Cost Small Outline Prototyping Adapter

FEATURES

  • Mates SOT23, SOIC, MSOP, or TSSOP packages to standard breadboard and breakout boards for rapid and easy prototyping
  • Panelized adapters available upon request

Ordering information

Clear
  • BOARD MATERIAL: 0.062 [1.58] thick FR-4, UL 94V-0 with 1/2-oz. Cu traces
  • PIN INSULATOR: Polyester, UL 94V-0
  • PINS: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
  • PIN PLATING: Au Flash
  • OPERATING TEMPERATURE: -55°C to +125°C

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

ORDERING INFORMATION

Pads

Package

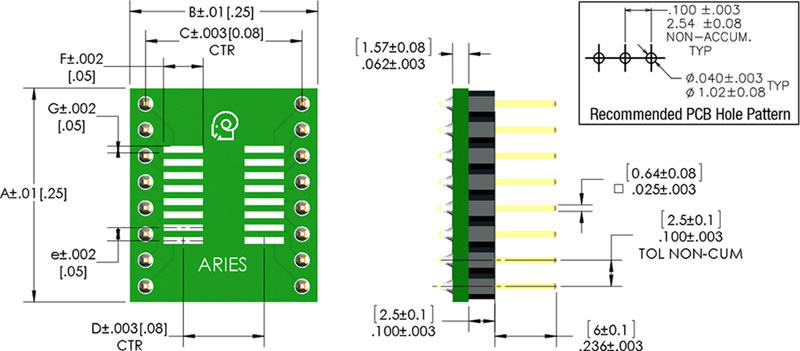

Dim. “A”

Dim. “B”

Dim. “C”

Dim. “D”

Dim. “e”

Dim. “F”

Dim. “G”

P/N

6

SOT23

0.4 [10.16]

0.5 [12.7]

0.3 [7.62]

0.091 [2.30]

0.037 [0.95]

0.035 [0.90]

0.024 [0.60]

LCQT-SOT23

8

SOIC8

0.5 [12.7]

0.5 [12.7]

0.3 [7.62]

0.205 [5.20]

0.050 [1.27]

0.087 [2.20]

0.024 [0.60]

LCQT-SOIC8

10

MSOP10

0.6 [15.24]

0.5 [12.7]

0.3 [7.62]

0.161 [4.10]

0.020 [0.50]

0.039 [1.00]

0.012 [0.30]

LCQT-MSOP10

14

TSSOP14

0.7 [17.78]

0.5 [12.70]

0.3 [7.62]

0.230 [5.48]

0.026 [0.65]

0.039 [1.00]

0.012 [0.30]

LCQT-TSSOP14

14

SOIC14

0.7 [17.78]

0.7 [17.78]

0.6 [15.24]

0.205 [5.20]

0.050 [1.27]

0.087 [2.20]

0.024 [0.60]

LCQT-SOIC14

14

SOIC14W

0.7 [17.78]

0.7 [17.78]

0.6 [15.24]

0.362 [9.20]

0.050 [1.27]

0.087 [2.20]

0.024 [0.60]

LCQT-SOIC14W

16

TSSOP16

0.8 [20.32]

0.7 [17.78]

0.6 [15.24]

0.314 [7.98]

0.026 [0.65]

0.070 [1.78]

0.017 [0.42]

LCQT-TSSOP16

16

SOIC16

0.9 [22.8]

0.8 [20.3]

0.6 [15.24]

0.314 [7.98]

0.05 [1.27]

0.152 [3.86]

0.026 [0.66]

LCQT-SOIC16

16

SOIC16W

0.9 [22.8]

0.8 [20.3]

0.6 [15.24]

0.314 [7.98]

0.05 [1.27]

0.152 [3.86]

0.026 [0.66]

LCQT-SOIC16W

20

TSSOP20

1.0 [25.4]

0.7 [17.78]

0.6 [15.24]

0.222 [5.64]

0.026 [0.65]

0.012 [0.30]

0.039 [0.99]

LCQT-TSSOP20

20

SSOP20

1.0 [25.4]

0.7 [17.78]

0.6 [15.24]

0.285 [7.25]

0.026 [0.65]

0.059 [1.50]

0.016 [0.40]

LCQT-SSOP20

20

SOIC20W

1.0 [25.4]

0.7 [17.78]

0.6 [15.24]

0.396 [10.06]

0.050 [1.27]

0.080 [2.03]

0.026 [0.66]

LCQT-SOIC20W

28

TSSOP28

1.4 [35.56]

0.7 [17.78]

0.6 [15.24]

0.228 [5.80]

0.026 [0.65]

0.047 [1.20]

0.014 [0.35]

LCQT-TSSOP28

28

SOIC28

1.4 [35.56]

0.7 [17.78]

0.6 [15.24]

0.380 [9.65]

0.050 [1.27]

0.079 [2.00]

0.031 [0.80]

LCQT-SOIC28

32

SOIC32

1.6 [40.64]

0.7 [17.78]

0.6 [15.24]

0.362 [9.20]

0.050 [1.27]

0.087 [2.20]

0.024 [0.60]

LCQT-SOIC32

32

SOIC32W

1.6 [40.64]

0.7 [17.78]

0.6 [15.24]

0.425 [10.80]

0.050 [1.27]

0.087 [2.20]

0.024 [0.60]

LCQT-SOIC32W

32

TSOP I

1.6 [40.64]

0.7 [17.78]

0.6 [15.24]

0.598 [15.20]

0.020 [0.50]

0.063 [1.60]

0.012 [0.30]

LCQT-TSOP32-1

32

TSOP I

2.0 [50.8]

0.7 [17.78]

0.6 [15.24]

0.776 [19.70]

0.020 [0.50]

0.047 [1.20]

0.014 [0.36]

LCQT-TSOP32

40

TSOP I

2.0 [50.8]

0.7 [17.78]

0.6 [15.24]

0.598 [15.20]

0.020 [0.50]

0.063 [1.60]

0.012 [0.30]

LCQT-TSOP40

40

TSOP I

2.0 [50.8]

0.7 [17.78]

0.6 [15.24]

0.756 [19.20]

0.020 [0.50]

0.063 [1.60]

0.012 [0.30]

LCQT-TSOP40-1
