Low-Cost Quick Turn QFP Prototyping Adapters

Low-Cost, Quick Turn QFP Prototyping Adapter

FEATURES

  • Mates common QFP packages to standard breadboard and breakout boards for rapid and easy prototyping
  • Panelized adapters available upon request

Ordering information

Clear
  • BOARD MATERIAL: 0.062 [1.58] thick FR-4, UL 94V-0 with 1/2-oz. Cu traces
  • PIN INSULATOR: Polyester, UL 94V-0
  • PINS: 360 1/2-hard per UNS C36000 ASTM-B16-00
  • PIN PLATING: Au Flash
  • OPERATING TEMPERATURE: -55°C to +125°C

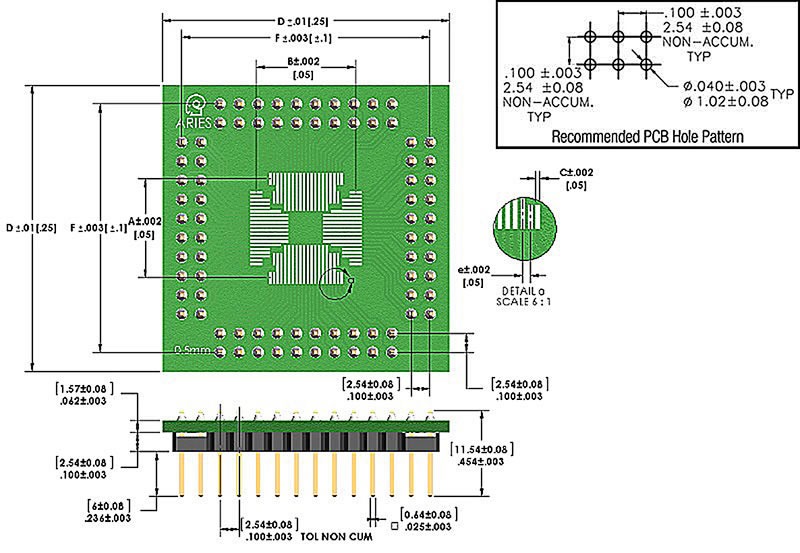

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

ORDERING INFORMATION

Pads

Device Body Size
inch [mm]

Dim. “A”
inch [mm]

Dim. “B”
inch [mm]

Dim. “C”
inch [mm]

Dim. “D”
inch [mm]
Dim. “F”
inch [mm]

Dim. “e”
inch [mm]

P/N

32

0.197 x 0.197 [5 x 5]

0.244 [6.2]

0.244 [6.2]

0.012 [0.30]

1.50 [38.10]
1.30 [33.02]

0.020 [0.50]

LCQT-QFP0.5-32

32

0.276 x 0.276 [7 x 7]

0.339 [8.6]

0.339 [8.6]

0.016 [0.40]

1.70 [43.18]
1.50 [38.10]

0.031 [0.80]

LCQT-QFP0.8-32

40

0.197 x 0.276 [5 x 7]

0.244 [6.2]

0.323 [8.2]

0.012 [0.30]

1.50 [38.10]
1.30 [33.02]

0.020 [0.50]

LCQT-QFP0.5-40

40

0.276 x 0.276 [7 x 7]

0.323 [8.2]

0.323 [8.2]

0.016 [0.40]

1.50 [38.10]
1.30 [33.02]

0.020 [0.50]

LCQT-QFP0.5-40-1

44

0.394 x 0.394 [10 x 10]

0.472 [12]

0.472 [12]

0.020 [0.50]

1.70 [43.18]
1.50 [38.10]

0.031 [0.80]

LCQT-QFP0.8-44

52

0.276 x 0.394 [7 x 10]

0.323 [8.2]

0.441 [11.2]

0.012 [0.30]

1.50 [38.10]
1.30 [33.02]

0.020 [0.50]

LCQT-QFP0.5-52

52

0.394 x 0.394 [10 x 10]

0.472 [12]

0.472 [12]

0.016 [0.40]

1.50 [38.10]
1.30 [33.02]

0.026 [0.65]

LCQT-QFP0.65-52

60

0.276 x 0.394 [7 x 10]

0.323 [8.2]

0.441 [11.2]

0.012 [0.30]

1.50 [38.10]
1.30 [33.02]

0.020 [0.50]

LCQT-QFP0.5-60

64

0.394 x 0.394 [10 x 10]

0.441 [11.2]

0.441 [11.2]

0.012 [0.30]

1.50 [38.10]
1.30 [33.02]

0.020 [0.50]

LCQT-QFP0.5-64

64

0.472 x 0.472 [12 x 12]

0.559 [14.2]

0.559 [14.2]

0.016 [0.40]

1.50 [38.10]
1.30 [33.02]

0.026 [0.65]

LCQT-QFP0.65-64

64

0.551 x 0.551 [14 x 14]

0.630 [16]

0.630 [16]

0.020 [0.50]

1.70 [43.18]
1.50 [38.10]

0.031 [0.80]

LCQT-QFP0.8-64

80

0.472 x 0.472 [12 x 12]

0.520 [13.2]

0.520 [13.2]

0.012 [0.30]

1.50 [38.10]
1.30 [33.02]

0.020 [0.50]

LCQT-QFP0.5-80

80

0.551 x 0.551 [14 x 14]

0.630 [16]

16 [0.016]

0.016 [0.040]

1.50 [38.10]
1.30 [33.02]

0.026 [0.65]

LCQT-QFP0.65-80

80

0.551 x 0.787 [14 x 20]

0.638 [16.2]

0.874 [22.2]

0.020 [0.50]

1.70 [43.18]
1.50 [38.10]

0.031 [0.80]

LCQT-QFP0.8-80

Can’t Find What You're Looking For?

We can provide you a quote for creating a custom product that fits all of your needs. Let us know exactly what you are looking for and we can make it!
