Live Bug Type Universal PLCC ZIF Test Socket – Series 537

FEATURES

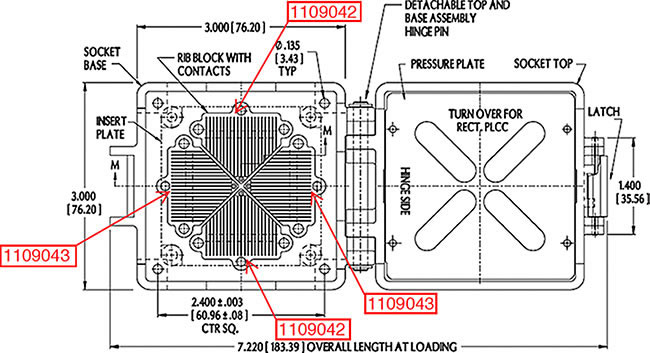

  • This Universal PLCC ZIF Test Socket takes seven sizes of PLCC footprints
    with Aries Insert Plates

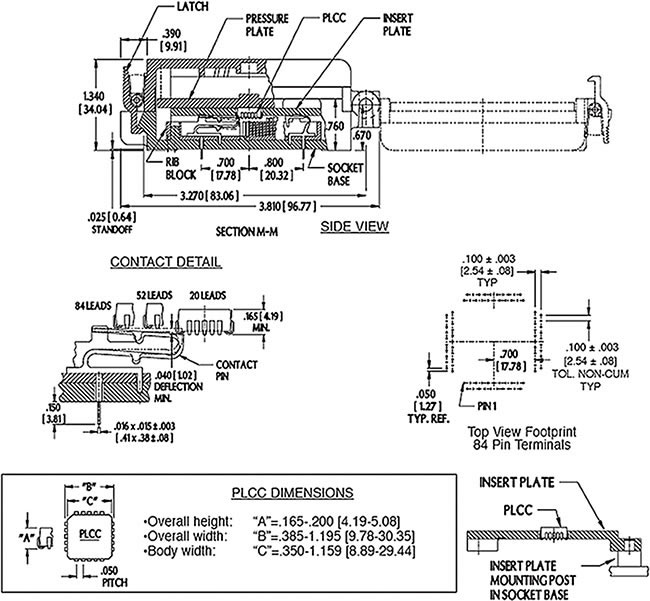

  • The PLCC is inserted ‘live bug’ (pins down) into the position
    over the bed; the top half of the clamshell is closed for testing, programming,
    etc. The bottom solder tail pins are the ends of the contacts or “bed,” thus
    permitting mounting to a PC board
  • Accepts JEDEC MO-047AA-AH PLCCs and JEDEC MO-044AA-AB ceramics with 20,
    28, 44, 52, 68, or 84 square leads, as well as JEDEC MS-016 PLCCs with 32 rectangular
    leads

Ordering information

Clear
  • PLASTIC: black UL 94V-0 glass-filled Polyphenylene Sulfide (PPS)
  • CONTACT PIN: BeCu 172 heat-treated
  • CONTACT PLATING: 12µ [0.31µ] min. Au per MIL-G-45204 over 100µ [2.54µ]
    min. Ni per SAE AMS-QQ-N-290B over 20µ [0.51µ] Cu per MIL-C-14550
  • HARDWARE: Stainless Steel
  • OPERATING TEMPERATURE: 85°F to 257°F [-65°C to 125°C]
  • LIFE CYCLE: 10,000 insertions max.
  • SUGGESTED PCB HOLE SIZE: 0.032 ±0.002 [0.81 ±0.05] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
