Universal SOIC-to-DIP 0.600 [15.24] Adapter – Series 647

FEATURES

Ordering information

Clear

Consult Data Sheet 10015 for Universal SOIC ZIF (Zero-Insertion-Force) Test Socket.

  • BODY MATERIAL: black 0.062 [1.58] thick FR-4 or IS410 per IPCA4101A/26, 0.094
    [2.39] thick, with 1-oz. min. Cu traces
  • FEMALE PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
  • FEMALE PIN BODY PLATING: 200µ [5.08µ] min. Sn per ASTM B545
    Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
  • 4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM-B194-01
  • COLLET CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204
    over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
  • MALE PIN: Phosphor Bronze 544 UNS C5400 ASTMB139-90
  • MALE PIN PLATING: 200µ [5.08µ] min. Sn per ASTM B545 Type 1
    over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
  • COLLET CONTACT CURRENT RATING: 3 amps
  • OPERATING TEMPERATURE: 221°F [105°C]
  • INSERTION FORCE: 180g/pin; based on a 0.018 [0.46] dia. test lead
  • WITHDRAWAL FORCE: 90g/pin; based on a 0.018 [0.46] dia. test lead
  • SUGGESTED PCB HOLE SIZE: 0.028 ±0.002 [0.71 ±0.05] dia.

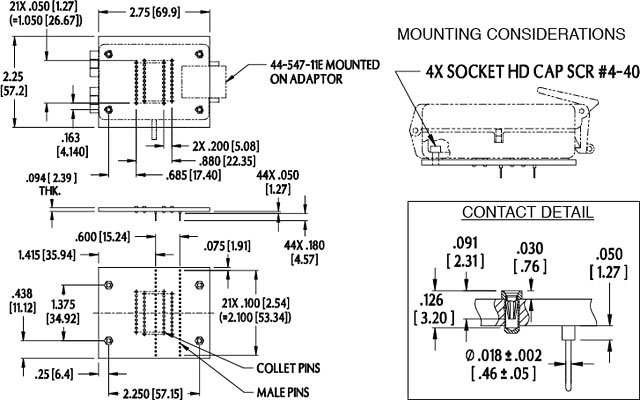

ALL DIMENSIONS IN INCHES [MILLIMETERS]

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
