Low-Profile ZIF DIP Test Socket – Series 526

FEATURES

  • A choice of 24, 28, or 40 pin count devices can be inserted without bending
    or otherwise damaging the legs, since no force is required to either insert or
    remove the component from the ZIF DIP test socket
  • A metal cam provides strong, smooth action as it moves to a positive stop,
    compressing the double-sided contacts, ensuring a gas-tight seal
  • Test point openings provided to reach all pins

Ordering information

Clear
  • PLASTIC BODY: black UL 94V-0 glass-filled 4/6 Nylon
  • CONTACTS: BeCu 172, spring-tempered
  • CONTACT PLATING: “-10” 200µ [5.08µ] min. matte Sn
    per ASTM B545-97(2004) over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B; “-10TL” 200µ [5.08µ]
    min. 90/10 Sn/Pb per MIL-T-10727 over 50µ [1.27µ] min. Ni per SAE
    AMS-QQ-N-290; “-11” 10µ [0.25µ] min. Au per MIL-G-45204
    over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B – CONSULT FACTORY for availability
  • CAM: lightweight, strong, and rigid cast Zn
  • OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn & Sn/Pb
    plating; -67°F to 257°F [-55°C to 125°C] Au plating
  • CONTACT CURRENT RATING: 2 amps
  • CONTACT RESISTANCE: 10 mΩ max.
  • BREAKDOWN VOLTAGE: 1000VAC min.
  • AVERAGE RETENTION FORCE (when closed): 110g/lead, based on 0.010 [0.25] dia.
    test lead
  • SOCKET ACCEPTS: 0.008-0.014 [0.20-0.36] thick leads, 0.075-0.200 [1.91-5.08]
    long
  • SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.

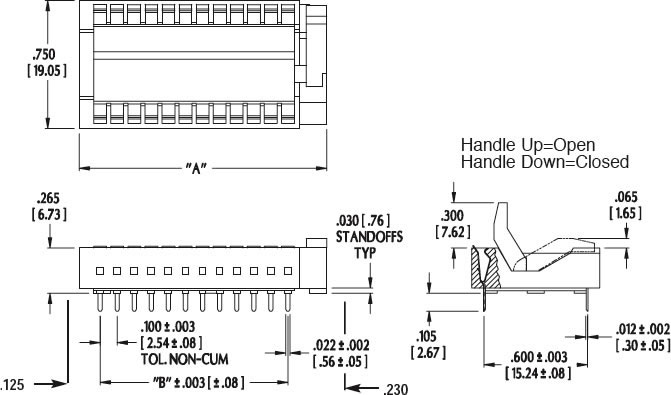

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

SERIES 516 STANDARD ZIF SOCKET ALSO AVAILABLE. CONSULT DATA SHEET 10017

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

# Positions
Dim. “A”
Dim. “B”
24
1.450 [36.83]
1.100 [27.94]
28
1.650 [41.90]
1.300 [33.02]
40
2.250 [57.15]
1.900 [48.26]
