Flat Pin-Staked Flex Jumpers – Series 171 thru 173

Flat Pin-Staked Flex Jumpers – Series 171 thru 173

FEATURES

  • Flat Pin-staked Flex Jumpers combine thin, flexible, solid Cu Conductors
    embedded between layers of tough, flexible, flame-retardant insulation
  • See Data Sheet 11019 for 90° Pin-staked Flex Jumpers

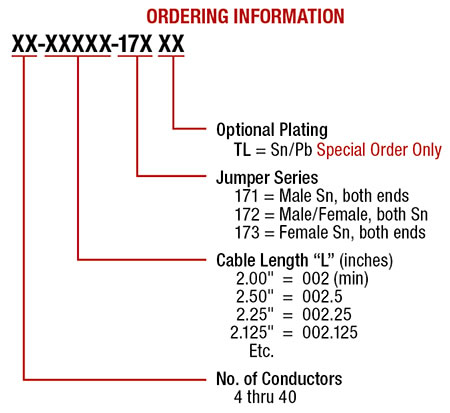

Ordering information

Clear

NOTE: Please contact the factory for price and availability of any high temp (HT) cable larger than 20 conductors.

  • STANDARD CABLE INSULATION: white UL VW-1, Style 2643 Flame-retardant Polyester
    (Mylar) Adhesive
  • CABLE CONDUCTORS: solid Cu with cross-sectional area equivalent to that
    of 26-gauge AWG
  • FEMALE HOUSING: black UL 94V-0 glass-filled Stanyl® 4/6 Nylon
  • CRIMP-ON PINS: spring-tempered Cu 510
  • PIN PLATING: 100µ [2.54µ] min.
    matte Sn per ASTM B545-97(2004)e1 over 50µ [1.27µ] min. Ni per SAE
    AMS-QQ-N-290; or 100µ [2.54µ] min. Sn/Pb per SAE AMS-P-81728
    over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
  • CABLE CURRENT RATING: 3 amps
  • CABLE VOLTAGE RATING: 300V
  • STD OPERATING TEMPERATURE: -67 to 221°F [-55 to 105°C]
  • FEMALE HOUSING: ACCEPTS LEADS: 0.024-0.030 [0.61-0.76] square, 0.150 [3.81]
    long min.
  • SUGGESTED PCB HOLE SIZE: 0.032 ±0.002 [0.81 ±0.05] dia.

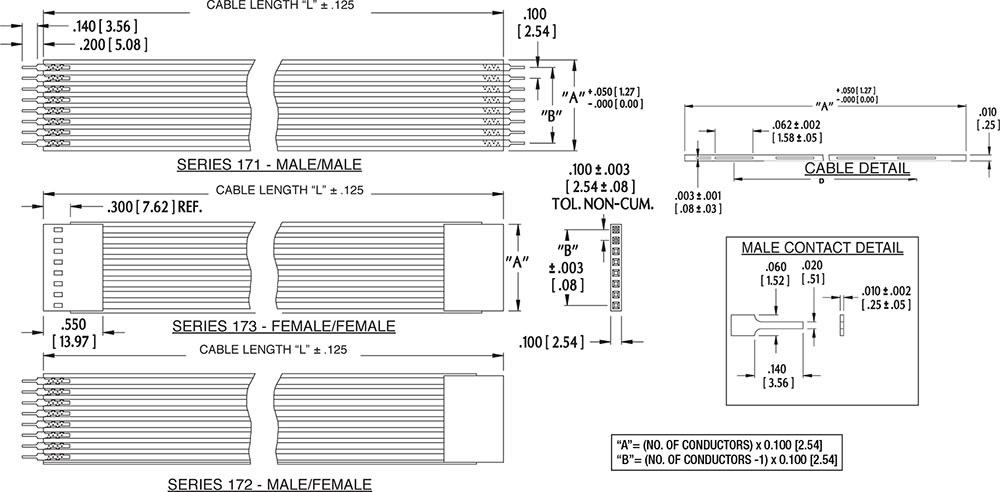

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“A” # CONDUCTORS x 0.100 [2.54]
“B” (# CONDUCTORS -1) x 0.100 [2.54]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

NOTE: Please contact the factory for price and availability of any high temp (HT) cable larger than 20 conductors.
