90° Pin-Staked Flex Jumper – Series 181 thru 183

FEATURES

  • 90° Pin-Staked Flex Jumpers combine thin, flexible, solid Cu conductors
    embedded between layers of tough, flexible, flame-retardant insulation
  • See Data Sheet 11005 for Flat Pin-Staked Flex Jumpers

Ordering information

Clear
  • STANDARD CABLE INSULATION: White UL VW-1, Style 2643 Flame-retardant Polyester (Mylar)
    adhesive
  • CABLE CONDUCTORS: solid Cu with a cross-sectional area equivalent to that
    of 26-gauge AWG
  • FEMALE HOUSING: black UL 94V-0 glass-filled Stanyl® 4/6 Nylon
  • CRIMP-ON PINS: spring-tempered Cu 510
  • PIN PLATING: 100µ [2.54µ] min. matte Sn per ASTM B545-97(2004)e1 over 50µ min.
    Ni per ASTM AMS-QQ-N-290; or 100µ [2.54µ] min. 93/7
    Sn/Pb per SAE AMS-P-81728 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
  • CABLE CURRENT RATING: 3 amps
  • CABLE VOLTAGE RATING: 300V
  • CONDUCTOR/CONTACT RESISTANCE (avg.): 20 mΩ initial (max. 20mΩ increase)
    based on a 2″ cable at 20°C
  • STD OPERATING TEMPERATURE: -67 to 221°F [-55 to 105°C]
  • FEMALE HOUSING: accepts leads 0.024-0.030 [0.61-0.76] square, 0.150 [3.81]
    long min.
  • SUGGESTED PCB HOLE SIZE: 0.032 +0.002 [0.81 +0.05] dia.

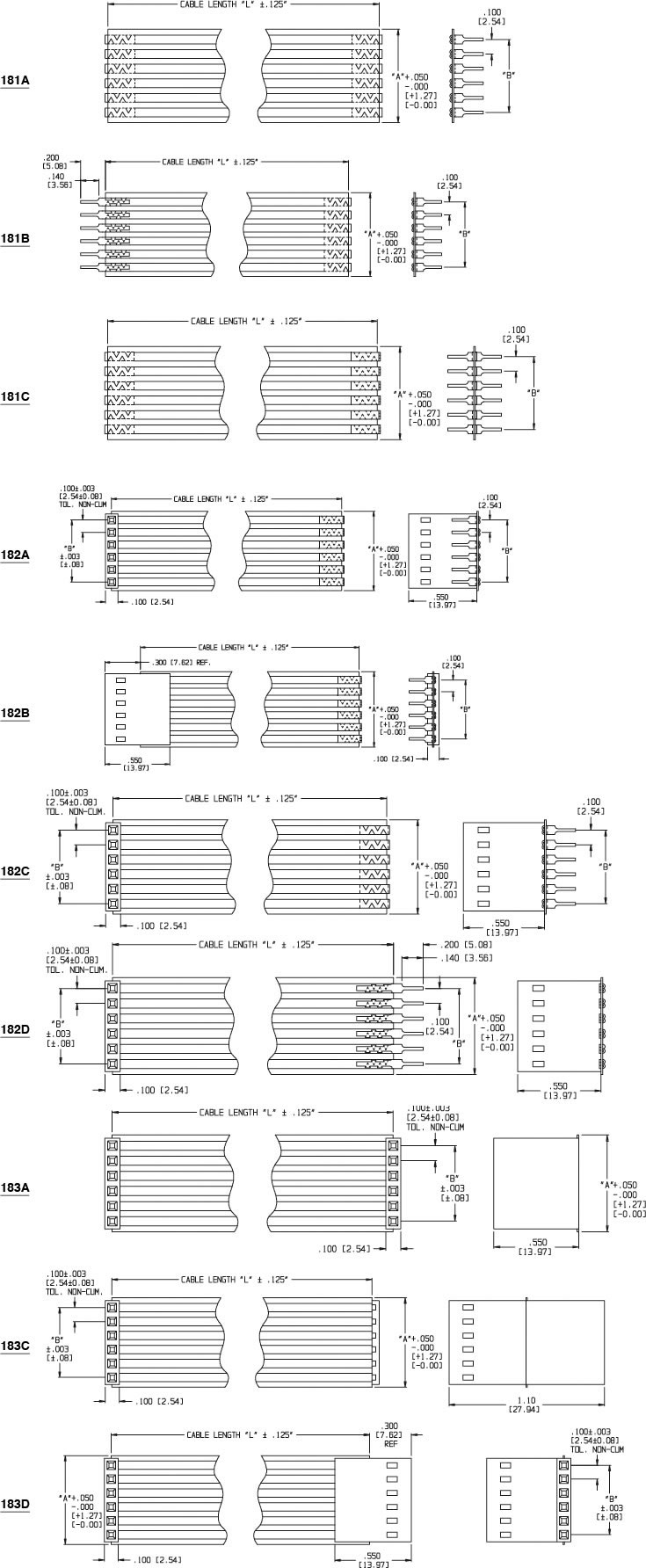

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

“A” # CONDUCTORS x 0.100 [2.54]
“B” (# CONDUCTORS -1) x 0.100 [2.54]

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
