SIP Jumpers – Series 150 and 151

FEATURES

  • Aries offers a wide array of jumper configurations and wiring possibilities
    for all your programming needs
  • Pitch bars help maintain 0.100 [2.54] conductor spacing
  • 10-color cable allows for easy identification and tracing
  • For jumper lengths under the specified min. length Consult Factory

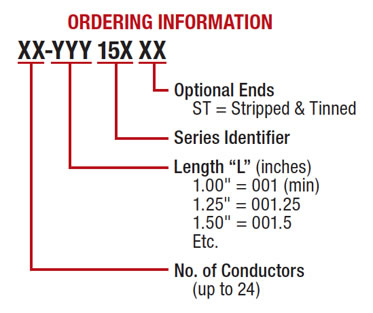

Ordering information

Clear
  • PITCH BAR: black UL 94V-0 glass-filled 4/6 Nylon
  • CABLE INSULATION: UL Style 2697 Polyvinyl Chloride (PVC)
  • CABLE LAMINATE: clear PVC, self-extinguishing
  • CONDUCTORS: 28-AWG, 7/36-strand, Tinned Cu per ASTM B 33
  • CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient
  • CABLE VOLTAGE RATING: 300V
  • CABLE TEMPERATURE RATING: -176°F [80°C]
  • CABLE CAPACITANCE: 13.0pF/ft. [42.7pF/meter] nominal at 1MHz
  • CROSSTALK: 10’ sample, 5ns Rise Time with 2 lines driven; Near end
    4.7%; Far end 4.3% nominal
  • INSULATION: Resistance 1010Ω (10 ft. [3 meters] min.)
  • SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.

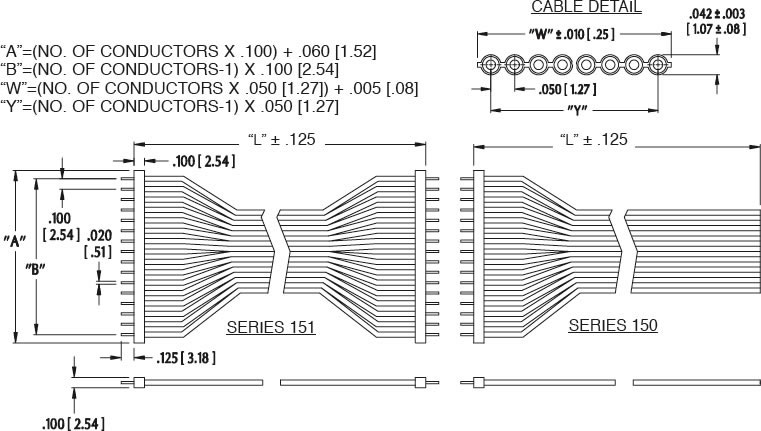

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
