DIP Logic Jumper – Series 115, 116, and 117

DIP Logic Jumper – Series 115, 116, and 117

FEATURES

  • Aries offers a wide array of DIP jumper configurations and wiring possibilities
    for all your programming needs
  • Reliable, electronically-tested solder connections
  • Protective covers are ultrasonically-welded on and provide strain relief
    for cables
  • 10-color cable allows for easy identification and tracing
  • DIP-ER™ Logic jumper wiring is point-to-point. Consult
    factory
    for other wiring needs

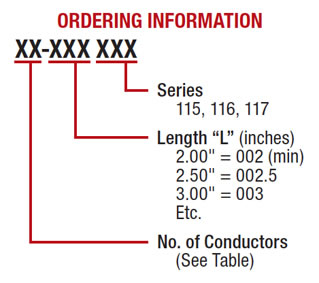

Ordering information

Clear
  • HEADER BODY: black UL 94V-0 glass-filled 4/6 Nylon
  • HEADER PINS: Brass, 1/2-hard
  • PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ]
    min. Ni per SAE AMS-QQ-N-290B
  • CABLE INSULATION: UL Style 2697 flame-retardant Polyvinyl Chloride (PVC),
    0.010 [0.25] nominal thickness
  • CONDUCTORS: 28-AWG, 7/36-strand, tinned Cu per ASTM B 33
  • CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient
  • CABLE VOLTAGE RATING: 300V
  • CABLE TEMPERATURE RATING: 176°F [80°C]
  • INSULATION RESISTANCE: 1010Ω (10 ft. [3 meters] min.)
  • SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.

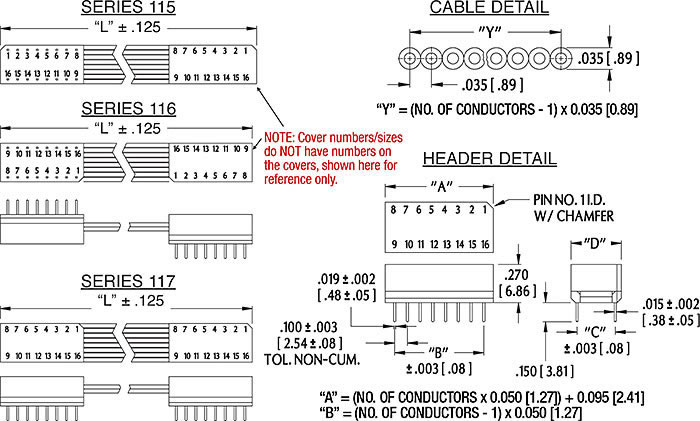

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

Centers “C”
Dim. “D”
Available Sizes
0.300 [7.62]
0.395 [10.03]
8, 14, 16, 18, 20
0.400 [10.16]
0.495 [12.57]
22
0.600 [15.24]
0.695 [17.65]
24, 28, 40
