Male/Female DIP Jumpers – Series 200 thru 216

Male/Female DIP Jumpers – Series 200 thru 216

FEATURES

  • Aries offers a wide array of DIP jumper configurations for all your programming
    needs
  • Reliable, electronically-tested solder connections
  • Protective covers are ultrasonically-welded on and provide strain relief
    for cables
  • 10-color cable allows for easy identification and tracing
  • For jumper lengths under 2.000 [50.80] Consult Factory

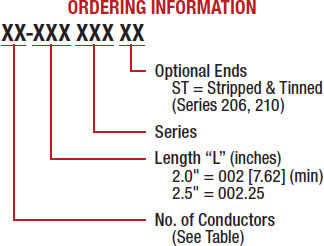

Ordering information

Clear

See Data Sheet 11013 for other configurations and additional information.

  • BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
  • SOLDER TAIL PINS: Brass, 1/2-hard
  • SOCKET CONTACTS: Grade A, spring-tempered Phosphor Bronze per QQ-B-750
  • PIN AND CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204
    over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
  • CABLE INSULATION: UL Style 2697 Polyvinyl Chloride (PVC)
  • LAMINATE: clear PVC, self-extinguishing
  • CONDUCTORS: 28-AWG, 7/36-strand, tinned Cu per ASTM B 33
  • CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient
  • CABLE VOLTAGE RATING: 300V
  • CABLE TEMPERATURE RATING: 176°F [80°C]
  • CABLE CAPACITANCE: 13.0pF/ft. [42.7pF/meter] nominal at 1MHz
  • CROSSTALK: 10’ sample, 5ns Rise Time with 2 lines driven; Near end
    4.7%; Far end 4.3% nominal
  • PROPAGATION DELAY: 1.5ns/ft. [4.9ns/meter] nominal
  • INSULATION RESISTANCE: 1010Ω (10 ft. [3 meters] min.)
  • SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.

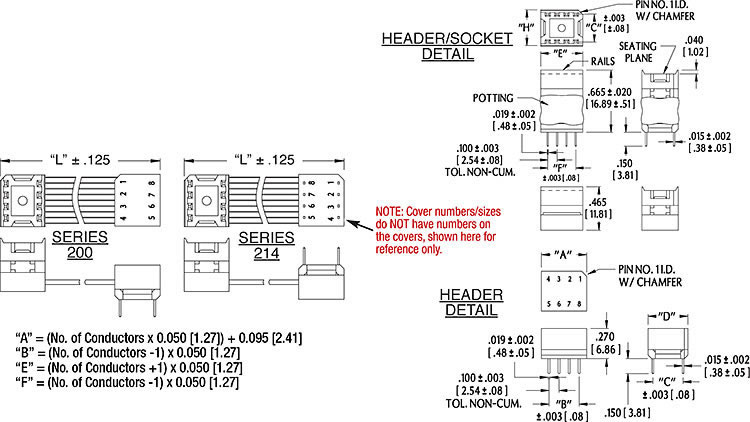

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

Centers “C”
Dim. “D”
Dim. “H”
Available Sizes
0.300 [7.62]
0.395 [10.03]
0.390 [9.90]
8, 14, 16, 18, 20
0.600 [15.24]
0.695 [17.65]
0.690 [17.54]
24, 28, 40
