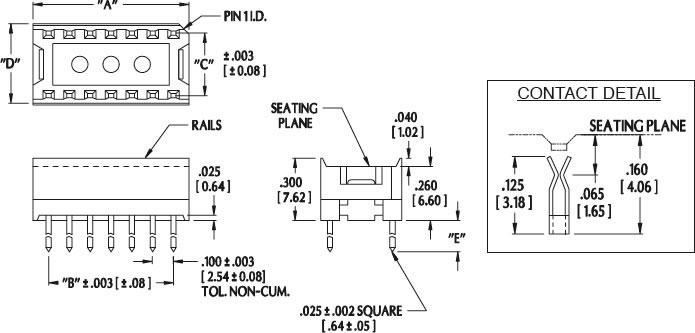

ALL DIMENSIONS IN INCHES [MILLIMETERS]
CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS
ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED
“A” (# PINS PER ROW x 0.100 [2.54]) +0.050 [1.27]
“B” (# PINS PER ROW -1) x 0.100 [2.54]
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED
CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
