Standard DIP Test Socket with Bifurcated Solder Pin Contacts – Series 511

Standard DIP Test Socket with Bifurcated Solder Pin Contacts – Series 511

FEATURES

  • Standard DIP sockets are available with Solder Pin Tails or Wire Wrap Pins, both with bifurcated contacts
  • Aries offers these standard DIP sockets in more sizes than any other manufacturer

Ordering information

Clear

Consult Data Sheet 12005 for Wire Wrap Pins.

  • STANDARD BODY: black UL 94V-0 glass-filled 4/6 Nylon
  • BIFURCATED CONTACTS: Grade A spring-tempered Phosphor Bronze per QQ-B-750
  • PIN PLATING: “0” 50-130µ min. matte Sn per ASTM B545-97(2004)e1
    over 50µ Ni per SAE AMS-QQ-N-290B; “0TL” 50-130µ 90/10
    Sn/Pb per MIL-T-10727 Type 1 over 50µ Ni per SAE AMS-QQ-N-290B; “1” 10µ [0.25µ]
    min. Au per MIL-G-45204 over 50µ Ni per SAE AMS-QQ-N-290B
  • CONTACT CURRENT RATING: 1 amp
  • OPERATING TEMPERATURE: -67°F to 221°F [-55°C to105°C] Sn;
    -67°F to 257°F [-55°C 125°C] Au
  • INSERTION FORCE: 110g/pin average
  • WITHDRAWAL FORCE: 75g/pin average
  • ACCEPTS: flat leads up to 0.014 thick x 0.020 wide [0.36 x 0.51], Round Leads
    up to 0.020 [0.51] dia.
  • SOCKET ACCEPTS: lead lengths from seating plane from 0.075-0.160 [1.91-4.06]
  • SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ± 0.05] dia.

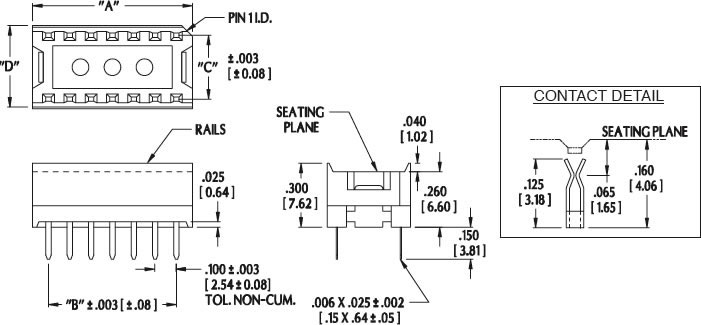

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“A” (# PINS PER ROW x 0.100 [2.54]) +0.050 [1.27]
“B” (# PINS PER ROW -1) x 0.100 [2.54]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

Centers “C”
Width “D”
Available Sizes
0.200 [5.08]
0.290 [7.36]
8, 10
0.300 [7.62]
0.390 [9.90]
8, 14-20
0.600 [15.24]
0.690 [17.54]
8-24, 28-40, 48
