Low-Profile Collet DIP Socket with Solder Pin Tails – Series 513

Available in RoHS

FEATURES

  • Available with Solder Pin Tails
  • Choose from Several Sizes and Plating Options
  • For Wire Wrap Pins, see Data Sheet 12012

Ordering information
Clear

Consult Data Sheet 12012 for Low-Profile Collet Sockets with Wire Wrap Pins.

  • BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
  • SHELL MATERIAL: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
  • SHELL PLATING: either 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
  • 4-FINGER COLLET MATERIAL: BeCu per UNS C17200 ASTM B194-08
  • CONTACT PLATING: either 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1 or 10µ [0.25µ] Au per MIL-G-45204 over 50µ [1.27µ] min. [1.27µ] Ni per SAE AMS-QQ-N-290 Heavy 30µ [0.76µ] Au plating also available
  • CONTACT CURRENT RATING: 3 amps
  • INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
  • WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
  • NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
  • OPERATING TEMPERATURE: 221°F [105°C] Sn & Sn/Pb plating; 257°F [125°C] Au plating
  • ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.100-0.146 [2.54-3.71] long
  • SUGGESTED PCB HOLE SIZE: 0.030 ±0.002 [0.76 ±0.05] dia.

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“W” # PINS PER ROW x 0.100 [2.54]
“X” (# PINS PER ROW -1) x 0.100 [2.54]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

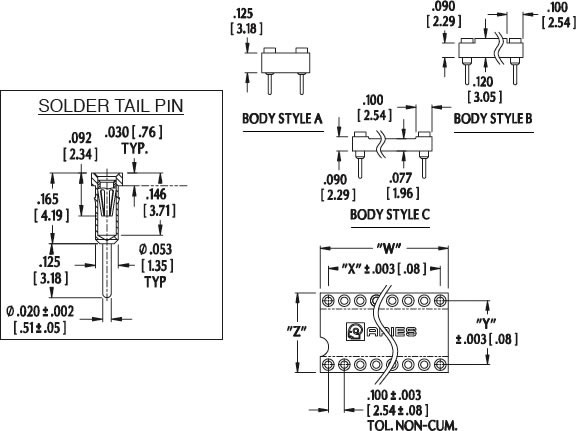

12011-collet-dip-socket-dwg-2

Centers “Y”
Dim. “Z”
0.010[0.254]”
Body Style
Available Sizes
0.200 [5.08]
0.300 [5.08]
A
2 thru 10
0.300 [7.62]
0.400 [10.16]
C
B
2 thru 20
22 thru 40
0.400 [10.16]
0.500 [12.70]
C
2 thru 22
0.600 [15.24]
0.700 [17.78]
C
B
2 thru 40
42 thru 48
0.900 [22.86]
1.000 [25.40]
B
2 thru 64
