Open Frame Collet DIP Solder Pin Tail Socket  – Series 518

FEATURES

  • Open Frame allows efficient utilization of board space with optimized cooling
  • Choose from several pin styles
  • Compatible with automatic insertion equipment
  • Side-to-side and end-to-end stackable

Ordering information
Clear
  • BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
  • PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
  • PIN BODY PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
  • 4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
  • CONTACT PLATING: 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1 or 10µ [0.25µ] Au per MIL-G-45204 over 50µ min. [1.27µ] Ni per SAE AMS-QQ-N-290B
  • AVAILABLE PLATING: Heavy Au 30µ [0.76µ]
  • CONTACT CURRENT RATING: 3 amps
  • OPERATING TEMPERATURE: 221°F [105°C] Sn and Sn/Pb plating 257°F [125°C] Au plating
  • INSERTION FORCE: 180g/pin, based on a 0.018 [0.46] dia. test lead
  • WITHDRAWAL FORCE: 90g/pin, based on a 0.018 [0.46] dia. test lead
  • NORMAL FORCE: 140g/pin, based on a 0.018 [0.46] dia. test lead
  • MIDGET PIN INSERTION FORCE: 370g/pin, based on a 0.018 [0.46] dia. test lead
  • MIDGET PIN WITHDRAWAL FORCE: 150g/pin, based on a 0.018 [0.46] dia. test lead
  • MIDGET PIN NORMAL FORCE: 240g/pin, based on a 0.018 [0.46] dia. test lead
  • ACCEPTS LEAD LENGTHS: from 0.100 [2.54] min. and 0.015-0.025 [0.38-0.64] dia.
  • ACCEPTS MIDGET PIN LEAD LENGTHS: from 0.080 [2.03] and up to 0.022 [0.56] dia.
  • SUGGESTED PCB HOLE SIZE FOR SOLDER PIN TAIL AND EXTRA LONG PIN: 0.030 ±0.002 [0.76 ±0.05] dia.
  • SUGGESTED PCB HOLE SIZE FOR MIDGET PIN: 0.040 ±0.002 [1.02 ±0.05] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

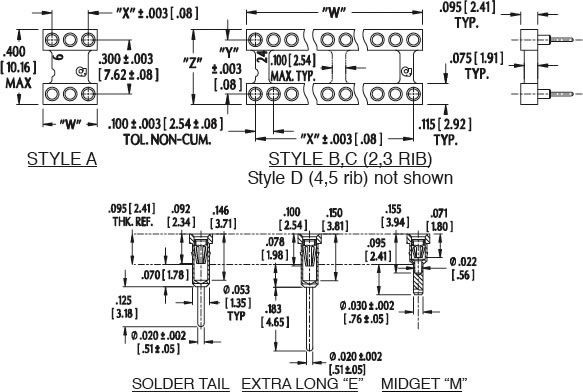

“W” (# PINS PER ROW) x 0.100 [2.54]
“X” (# PINS PER ROW -1) x 0.100 [2.54]

OTHER COLLET PINS AVAILABLE, CONSULT…DATA SHEET 12017 FOR WIRE WRAP PINS DATA SHEET 12018 FOR SURFACE MOUNT PINS DATA SHEET 12026 AND DATA SHEET 12027 FOR OPEN FRAME CAPACITOR SOCKETS

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

Frame Style
# Ribs
Centers “Y”
Dim. “Z”
Available Sizes
A
1
0.300 [7.62]
0.400 [10.16]
6
B
2
0.300 [7.62]
0.400 [10.16]
8, 14, 16, 18, 20, 24
0.400 [10.16]
0.500 [12.70]
20, 22
0.300 [7.62]
0.400 [10.16]
28
C
3
0.400 [10.16]
0.500 [12.70]
24
0.600 [15.24]
0.700 [17.78]
24, 28, 32, 40, 48
D
4, 5
0.900 [22.86]
1.000 [25.40]
50, 64
Download Data Sheet 12016
