Economy Miniature Jumper – Mini-Link™ Series ME-100

FEATURES

  • Mini-Link™ Miniature Jumpers are useful for jumpering 0.025 [0.63] square pins on 0.100 [2.54] centers
  • Used to jumper from row-to-row or from pin-to-pin
  • Their miniature size makes it possible to stack one on top of the other
  • Jumper terminal is partially exposed for testing
  • Sold in multiples of 1000
  • RoHS material-compliant (Not compliant for RoHS Soldering Specifications)

Ordering information

Clear
  • BODY MATERIAL: black UL 94V-0 glass-filled Polyester thermoplastic
  • CONTACTS: Phosphor Bronze
  • CONTACT PLATING: Sn over Ni
  • CONTACT CURRENT RATING: 3 amps
  • CONTACT RESISTANCE: 15mΩ max.
  • WITHSTANDING VOLTAGE: 650VAC (rms)
  • INSULATION RESISTANCE: 1000MΩ min.
  • OPERATING TEMPERATURE: -67°F to 248°F [-55°C to 120°C]
  • MINIMUM INSERTION DEPTH: 0.177 [4.50]
  • SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ± 0.05] dia.

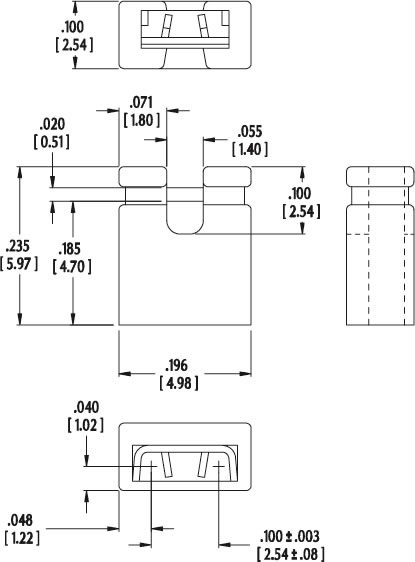

 ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
