PLCC-to-PGA JEDEC Adapter Type 0.050″ [1.27mm] Pitch – Series 505

FEATURES

  • Convert surface-mount PLCC packages to a PGA footprint
  • Pin polarization option also available
  • For Panelized Form or for mounting of consigned chips. Consult Factory

Ordering information

Clear
  • ADAPTER BODY: FR-4, 0.062 [1.58] thick, with 1-oz. min. Cu traces
  • PADS: hot-air solder leveled
  • PINS: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
  • PIN PLATING: 200μ [5.08μ] Sn/Pb 93/7 ASTM B579-73 over 100μ [2.54μ] Ni per ASE AMS-QQ-N-290 or 10μ [0.25μ] Au
  • OPERATING TEMPERATURE: 221°F [105°C]
  • SUGGESTED PCB HOLE SIZE: 0.028 ±0.003 [0.71 ±0.08] dia.
  • Will plug into standard PGA socket

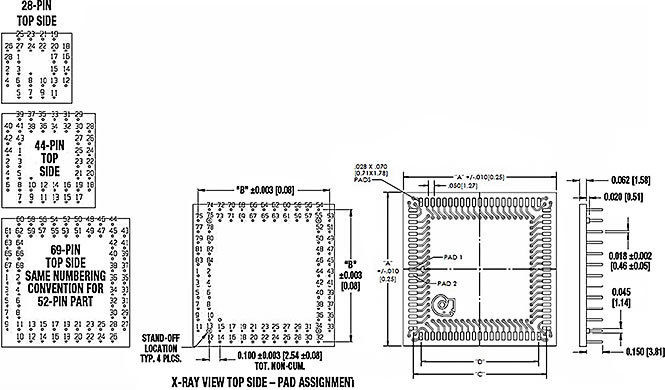

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

# Pins
Dim. “A”
Dim. “B”
Dim. “C”
Dim. “D”
Matching PGA P/N
28 or 29
0.600 [15.24]
0.500 [12.70]
0.448 [11.38]
0.324 [8.23]
29-PGM06002-10
44 or 45
0.800 [20.32]
0.700 [17.78]
0.648 [16.46]
0.524 [13.31]
44-PGM08002-10
68 or 69
1.100 [27.94]
1.000 [25.40]
0.948 [24.08]
0.824 [20.93]
68-PGM11032-10
84 or 85
1.300 [33.02]
1.200 [30.48]
1.148 [29.16]
1.024 [26.01]
84-PGM13042-10
