CSP/µBGA Test & Burn-In Socket for Devices Up to 6.5mm Square

FEATURES

  • Aries unique universal socketing system allows the socket to be easily configured for any package, on any pitch (or multiple pitch) from 0.2mm or greater, in any configuration, with little or no tooling charge or extra lead-time.
  • For Test & Burn-In of CSP, µBGA, Bump-Array, QFN, QFP, MLF, DFN, SSOP, TSSOP, TSOP, SOP, SOIC, LGA, LCC, PLCC, TO and any SMT package style made. Also can be compatible with PGA packaged devices.
  • Quick and Easy Probe Replacement System: the complete set of probes can be removed and a new set (interposer) can be inserted quickly and easily. The old set can be returned to the factory for repair and sent back within one day.
  • Socket is easily mounted and removed to & from the BIB due to solderless pressure mount compression Spring-Probes which, are accurately located by two molded plastic alignment pins and mounted with two stainless steel screws.
  • The Au over Ni-plated compression Spring-Probes leave very small witness marks on the bottom surface of the device solder balls.
  • Small overall socket size/profile allows max. number of sockets per BIB and BIB’s per oven, while being operator friendly.
  • Standard molded socket format can accommodate any device package of 6.5mm or smaller, by using machined (for small quantities) or custom molded (for large quantities) pressure pads and interposers.
  • Pressure pad compression spring provides proper force against device and allows for height variations in device thickness.
  • 4-point crown insures “scrub” on solder oxides.
  • Signal path during test only 0.077 [1.96].

Ordering Information

A detailed device drawing must be sent to Aries to quote and design a socket.

Easy-to-use Worksheet and Upload Form

NEED A BREAKOUT BOARD?

SPECIAL THERMAL REQUIREMENT WORKSHEET

  • MOLDED SOCKET COMPONENTS: UL 94V-0 Ultem
  • MACHINED SOCKET COMPONENTS: UL 94V-0 PEEK or Torlon
  • HARDWARE: Stainless Steel
  • COMPRESSION SPRING-PROBES: heat-treated BeCu
  • COMPRESSION PIN PROBE PLATING: 30µ min. [0.75µ] Au per MIL-G-45204 over 30µ min. [0.75µ] Ni per SAE AMS-QQ-N-290B
  • DURABILITY: 500,000 cycles min.
  • CONTACT FORCE…
    : 6g per contact on 0.20-0.29mm pitch
    : 15g per contact on 0.30-0.35mm pitch
    : 16g per contact on 0.40-0.45mm pitch
    : 25g per contact on 0.50-0.75mm pitch
    : 25g per contact on 0.80mm pitch or larger
  • OPERATING TEMPERATURE: -55°C [-67°F ] min. to 150°C [302°F] max.
  • TYPICAL AVERAGE BURN-IN TEMPERATURE: 150°C max.

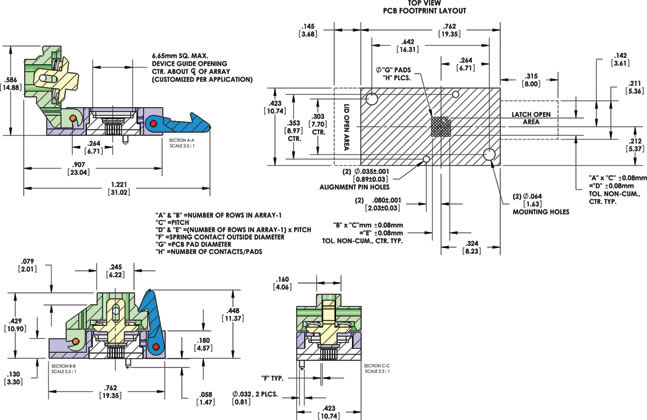

  • See “PCB FOOTPRINT TOP VIEW” for requirements.
  • REQUIRES: two #0-80 screws (supplied) and PEM nuts for mounting (not supplied). Mounting holes size shown may differ depending on PEM nut selected
  • NOTE: Sockets must be handled with care when mounting or removing sockets to/from BIB to avoid damaging sensitive spring contacts.
  • TEST PCB MINIMUM DIAMETER “G”…
    : 0.025 [0.64] (large probe 0.80mm pitch and larger)
    : 0.015 [0.38] (small probe 0.50-0.79mm pitch)
    : 0.012 [0.31] (small probe 0.40-0.49mm pitch)
    : 0.009 [0.23] (small probe 0.30-0.39mm pitch)
    : 0.004 [0.10] (small probe 0.20-0.29mm pitch)
  • TEST PCB DIA. SPRING-PROBE PAD PLATING: 30µ min. [0.75µ] Au per MIL-G-45204 over 30µ [0.75µ] min. Ni per SEA AMS-QQ-N-290. Pad must be the same height as top surface of PCB. Please refer to the Custom Socket Drawing supplied by Aries after receipt of your order for your specific application.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

FACTORY WILL SUPPLY SOCKET DRAWING WITH “A-H” DIMENSIONS. LEGIBLE DIMENSIONED DEVICE DRAWING REQUIRED AT QUOTE REQUEST AND TIME OF ORDER.

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.


FULL-ARRAY SHOWN AS AN EXAMPLE; YOUR SPECIFIC DEVICE PATTERN/FOOTPRINT WILL BE SUPPLIED WHEN ORDERED.

Download Data Sheet 23021
