PGA ZIF Test & Burn-in Socket for Any Footprint on Std 8×8 to 21×21 Grid

FEATURES

  • A strong, metal cam activates the normally-closed contacts, preventing dependency
    on plastic for contact force
  • The handle can be provided on right or left hand side
  • For special handle requirements, Consult Factory
  • Any footprint accepted on standard 13×13 to 21×21 grid

Available PGA Socket Footprints (PDFs)

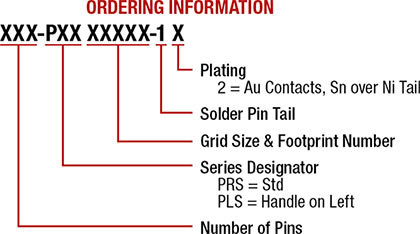

Ordering Information

Request a Quote

For Special Footprints, use the Special Footprint Form

  • SOCKET BODY: black UL 94V-0 Polyphenylene Sulfide (PPS)
  • CONTACTS: BeCu 174, 1/2-hard or Spinodal
  • BeCu CONTACT PLATING: Options: 30µ [0.76µ] min.
    Au per MIL-G-45204 on contact area, 200µ [5.08µ] min. matte Sn per
    ASTM B545-97 on solder tail, both over 30µ [0.76µ] min. Ni per QQ-N-290
    all over. CONSULT FACTORY for
    other plating options not shown
  • HANDLE: Stainless Steel
  • CONTACT CURRENT RATING: 1 amp
  • OPERATING TEMPERATURES: -85°F to 257°F [-65°C to 125°C]
    Au plating
  • ACCEPTS LEADS: 0.014-0.026 [0.36-0.66] dia., 0.120-0.290 [3.05-7.37] long
  • SUGGESTED PCB HOLE SIZE: 0.032 ±0.002 [0.81 ±0.05] dia.
  • See PCB Footprint in Drawings tab
  • Plugs into standard PGA sockets

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

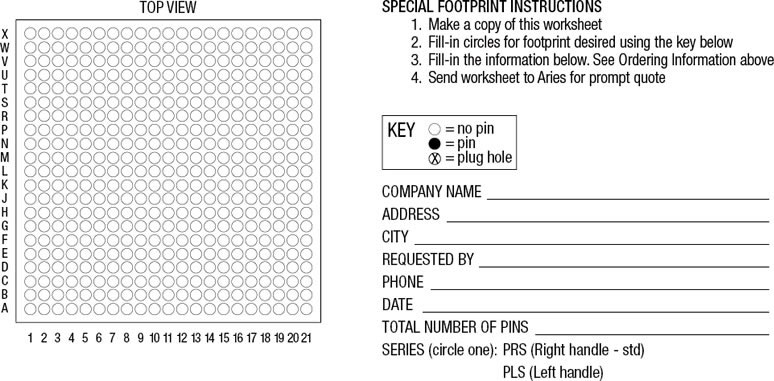

PLUGS (X) IN THESE COVER HOLE LOCATIONS, OR ANY OTHER LOCATIONS REQUIRED WILL ONLY BE SUPPLIED AS INDICATED ON THE PGA FOOTPRINT OR CUSTOMER-SUPPLIED PGA WORKSHEET IN DRAWINGS TAB.

Grid Size
No. of Pins
Dim. “C”
Dim. “A”
Dim. “B”
Dim. “D”
8 x 8 *
64
0.700 [17.78]
1.695 [43.05]
1.110 [28.19]
1.275 [32.39]
SPECIAL ORDER ONLY, Consult Factory
9 x 9
81
0.800 [20.32]
12 x 12*
144
1.100 [27.94]
1.894 [48.10]
1.510 [38.35]
1.675 [42.54]
13 x 13
169
1.200 [30.48]
14 x 14*
196
1.300 [33.02]
2.094 [53.20]
1.710 [43.43]
1.875 [47.62]
15 x 15
225
1.400 [35.56]
16 x 16*
256
1.500 [38.10]
2.294 [58.26]
1.910 [48.51]
2.075 [52.70]
17 x 17
289
1.600 [40.64]
18 x 18*
324
1.700 [43.18]
2.494 [63.34]
2.110 [53.59]
2.275 [57.78]
19 x 19
361
1.800 [45.72]
20 x 20*
400
1.900 [48.26]
2.694 [68.42]
2.310 [58.67]
2.475 [62.86]
21 x 21
441
2.000 [50.80]

* Top and Right-hand Side Row left out

PLUGS (X) IN COVER HOLE LOCATIONS WILL ONLY BE SUPPLIED AS INDICATED ON THE PGA FOOTPRINT OR CUSTOMER-SUPPLIED PGA WORKSHEET BELOW.

Can’t Find What You're Looking For?

We can provide you a quote for creating a custom product that fits all of your needs. Let us know exactly what you are looking for and we can make it!
