Pin Grid Array Socket/Header on 0.100 [2.54] Centers w/Solder Pin Tails

Pin Grid Array Socket/Header on 0.100 [2.54] Centers w/Solder Pin Tails

FEATURES

  • Aries offers a wide number of pin grid array configurations from which to choose
  • Low-insertion-force contacts standard

Available PGA Socket Footprints (PDFs)



Ordering Information

Request a Quote

* Special Order, Consult Factory

For Special Footprints, use the Special Footprint Form

  • PGM SERIES SOCKET BODY: black UL 94V-0 glass-filled 4/6 Nylon
  • PGG SERIES SOCKET BODY: FR-4, 0.062 [1.57] thick
  • PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
  • PIN BODY PLATING: either 200μ [5.08μ] min. Sn per ASTM B545 Type 1 or 200μ [5.08μ] min. 93/7 Sn/Pb per ASTM B545 or 10μ [0.254μ] min. Au per MIL-G-45204 over 100μ [2.54μ] min. Ni per SAE AMS-QQ-N-290B
  • 6-FINGERED COLLET CONTACT: BeCu per UNS C17200 ASTM-B194-01 (not applicable to Post Style Pin)
  • CONTACT PLATING: either 100μ [2.54μ] min. Sn per ASTM B545 Type 1 or 100μ [2.54μ] min. 93/7 Sn/Pb per ASTM B545 or 10μ [0.254μ] min. Au per MIL-G-45204 or 30μ [0.762μ] min. heavy Au plating also available
  • CONTACT CURRENT RATING: 3 amps
  • OPERATING TEMPERATURE : -67°F to 221°F [-55°C to 105°C] Sn plating : -67°F to 257°F [-55°C to 125°C] Au plating
  • STANDARD CONTACT INSERTION FORCE : 67g/pin WITHDRAWAL FORCE : 30g/pin NORMAL FORCE : 45g/pin; based on a 0.018 [0.46] dia. test lead
  • SPECIAL ULTRA-LOW INSERTION FORCE : 22g/pin WITHDRAWAL FORCE : 11g/pin NORMAL FORCE : 12g/pin; based on a 0.018 [0.46] dia. test lead
  • ACCEPTS LEADS: 0.015-0.026 [0.38-0.66] in dia., from 0.110 [2.79] long min.

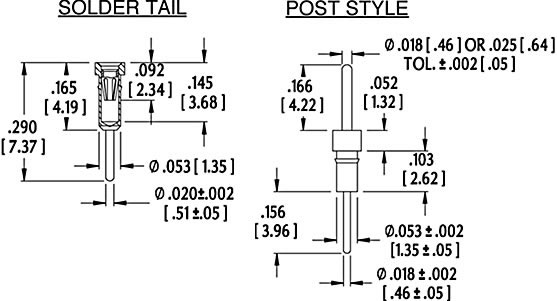

  • SUGGESTED PCB HOLE SIZE: Solder Tail : 0.030 ±0.002 [0.76 ±0.05] dia. : Post Style : 0.028 ±0.002 [0.71 ±0.05] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

BASIC DIMENSIONS :
“A SQ MAX” # PINS PER ROW x 0.100 [2.54]
“B” (# PINS PER ROW -1) x 0.100 [2.54]

ADDITIONAL CONFIGURATION OPTIONS INCLUDE A CUT-OUT WINDOW FOR MORE EFFICIENT UTILIZATION OF BOARD SPACE AND BETTER COOLING – AVAILABLE WITH OR WITHOUT PIN NUMBER ONE IDENTIFICATION SHOWN BELOW.

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
